Economic

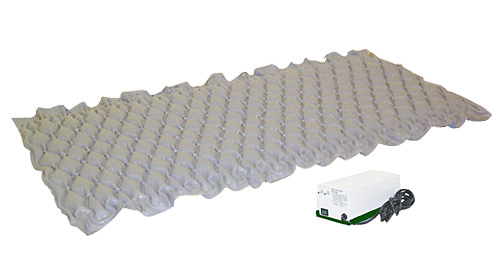

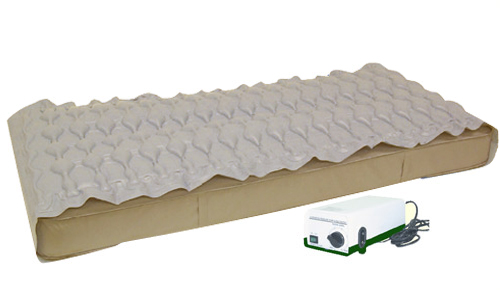

Alternating Pressure System
The Economic
Alternating Pressure System is
suitable for apoplectic or patients who
must lie on the bed for a long time and
can be used in the hospital or at home.
This system continually changes pressure
points which is same as a gentle massage
at first sign of a pressure sores.
The Economic
Alternating Pressure System is
a cost effective therapeutic overlay for
existing pads.
Economic
Alternating Pressure bubble Pad
The
Economic
Alternating Pressure Bubble Pad
is designed according to the Medical standard
which is with a heavy gauge, durable, stain
resistant PVC. The unique design of this
bubble pad allows more contact points offering
a superior therapeutic effect. The system
carries our high quality construction and
can be easily set up and run.

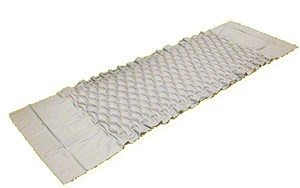

Pressure bubble Pad
|
#23590A/
#23590 PAD SPECIFICATION |
#23590VA/
#23590V PAD SPECIFICATION |
| Material |
EN-71
Low Toxic Textured PVC |
| Thickness |
0.35mm(14
gauge) |
| Dimension |
35"x128"
/ 35"x90" |
| Cell
Depth |
2
1/2" inflated |
| Air
Cell |
130
bubble cells |
| Ventilated
holes |
NO |
Yes |
| Air
Tube Covering |
NO |
| CPR
Deflation |
NO |
| Metal
Connectors |
YES |
| Inflated
Dimension |
2
1/2" x 34" x 78"
+ 19"x2(two laps to flod
under the mattress) / 2 1/2"
x 34" x 78" |
| Weight |
2.25
/1.95KGS |
|
Economic
Alternating Pressure Pump
The Economic
Alternating Pressure Pump features
a dual chamber compressor which produces
a high capacity output and silent running.
 |
 |

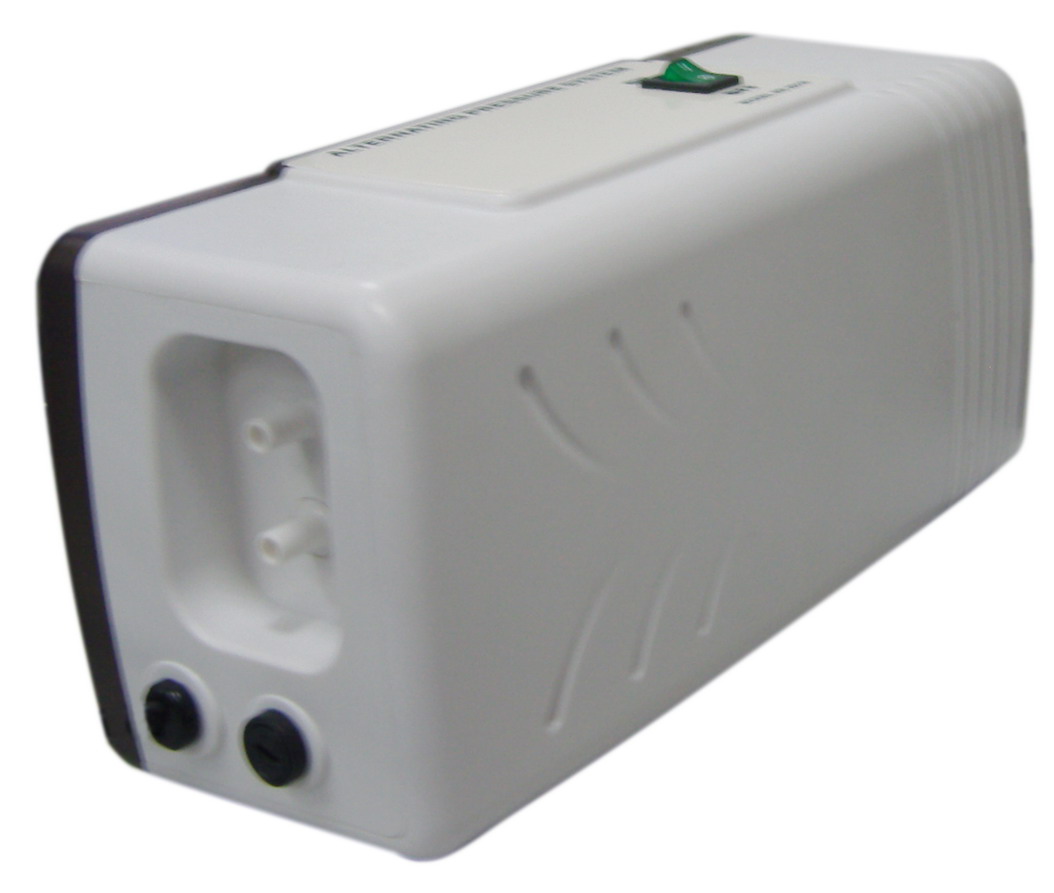

#6505
ᵑ PUMP SPECIFICATION |
| POWER
|
110V/60Hz,
100V/50Hz, 220V/50Hz |
| PRESSURE
RANGE |
55~105
mmHg |
| AIR
OUTPUT |
3.5~5
liters |
| CYCLE
TIME |
5
minutes |
| METAL
CONNECTORS |
YES |
| PRESSURE
ADJUSTED |
YES |
| DIMENSION |
10"
x 4 1/2" x 3" |
| WEIGHT |
1.6Kgs |
| APPROVAL |
UL,
CSA and CE |
|
| 6505 |

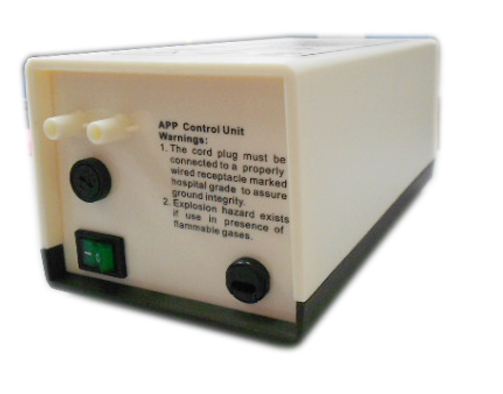

7505 |
| |
 |
 |
#6510ᵖ
PUMP SPECIFICATION |
| POWER
|
110V/60Hz,
100V/50Hz, 220V/50Hz |
| PRESSURE
RANGE |
55~105
mmHg |
| AIR
OUTPUT |
3.5~5
liters |
| CYCLE
TIME |
5
minutes |
| METAL
CONNECTORS |
YES |
| PRESSURE
ADJUSTED |
YES |
| DIMENSION |
8"
x 4" x 3" |
| WEIGHT |
1.4Kgs |
| APPROVAL |
UL,
CSA and CE |
|
| 6510 |
7510 |
| |
|
