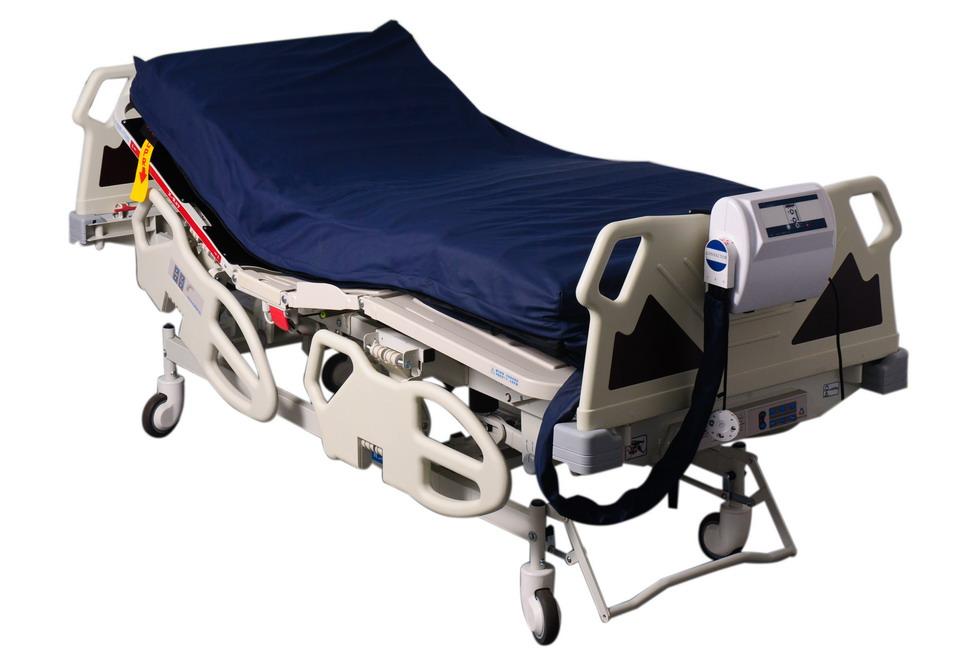

PL-9100L Multi-tubes Pressure Relieving System

The incredible PL-9100L Multi-Pressure Relieving System is one of the most effective and versatile of the true alternating overlays available. It is simple to set up and fits most standard hospital and care beds. The PL-9100L Multi-Pressure Relieving System is designed to offer the patient comfort and care whilst its full 24 cell multi therapy system is designed to assist in the effective prevention of pressure ulcers.

The PL-9100L Multi-Pressure Relieving System includes the ever popular A/B alternation system which is proven to stimulate capillary action and to assist with the healing of pressure sores. A/B alternation means that when the pressure increases on the first, third and fifth cells - it decreases on the second, fourth and sixth. At the end of each cycle, which takes approximately ten minutes, the reverse occurs which means that high and low pressures stimulate the capillaries to help ensure that tissue oxygenate on and nutrition occur alongside the removal of toxins.

The PL-9100L Multi-Pressure Relieving System comes complete with a durable easy to use pump that will cope with clients weighing up to 200kgs, and offers a low pressure range of 30 – 60 mmHg. The mattress uses a tough bacteriostatic cover and includes easy to use CPR facility.

SPECIFICATIONS

True A/B Alternation
The popular A/B alternation system is proven to stimulate capillary action and to assist with the healing of pressure sores. A/B alternation means that when the pressure increases on the first, third and fifth cells (A cells) - it decreases on the second, fourth and sixth (B cells).

Safe Non Turning Design
Straps located on base of mattress secure the overlay to the mattress, No need for mattress turning.

CPR Valve
Easy and straightforward CPR deflation, air evacuates quickly to perform CPR. The PL-9100L Economic Multi-Pressure Relieving System has an easy to use CPR switch located on the side panel. A simple lifting of the switch will deflate the mattress

Durable Pump
The PL-9100L Multi-Pressure Relieving System comes complete with a durable and easy to use pump that will cope with clients weighing up to 200 KGs / 25 Stones.

Preventing Pressure Sore
The PL-9100L Economic Multi-Pressure Relieving System is suitable for early sign of pressure sore formation, Grade 1, Grade 2 & Grade 3.

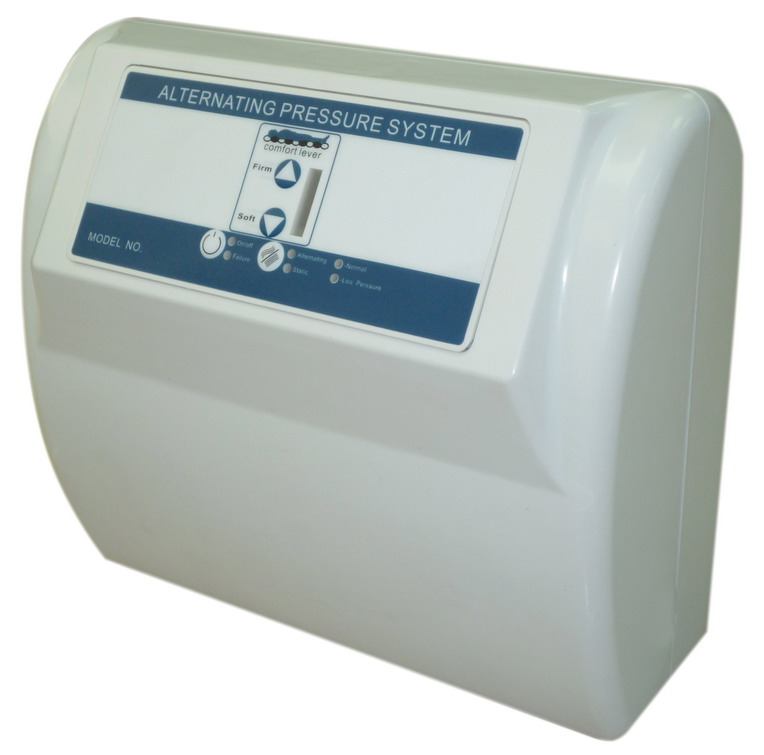

PL-8505L Alternating Pressure Release Pump Specifications: Power: 110V/ 60 or 50 Hz, 220v / 50 Hz Pressure Range: 30-60mmHG Air Output: 4-6 liters Cycle Time: 10 Minutes Noise: Less than 30db Dimensions: 10”x4 1/3”x 4” Function: Pressure adjustable and normal/low pressure indication

PL-3680 Multi-tubes Pressure Release Mattress Specifications: Dimensions: 80” x 36” x 5” Cells: 24 Nylon/PVC, Nylon/TPU or TPU cells, each cell is replaceable. PL-3680C Mattress Cover: Vinyl Water Repellent & Breathable Material.
